Helix Modular
Helix Modular is engineered for facilities where a unibody chamber can't fit through the door. The same medical-device-grade core as Helix Pro — 1.1 to 2.0 ATA, 93% oxygen delivery at 10 L/min — assembled and certified on site by our install team. Built for multi-room clinics, retrofit projects, and floor plans that would otherwise be impossible.
Prefer to talk first? Call 1-855-679-4268 or email clinicalhyperbaric@gmail.com for a private consult.
What you actually get.
Site-configurable build
Engineered to be assembled on site, which means it can reach rooms a unibody chamber physically cannot — basements, upper floors, retrofit suites, and tight stair turns.
Same medical-device-grade core as Helix Pro
Identical 1.1–2.0 ATA range, identical 93% oxygen delivery, identical 10 L/min flow, identical < 50 dB acoustic profile. The format is different — the engineering depth is not.
Pressure-tested in place
Every Helix Modular is pressure-tested at 150% of max operating pressure during install, with a documented commissioning report retained for service history.
Multi-room operator efficiency
Designed to scale across a multi-room install — recovery suites, longevity clinics, sports performance centers — with shared service intervals and a single trained operator.
Premium finish, clinical durability
Stainless steel pressure vessel, reinforced hatch, ambient lighting, integrated comms, and a finish that survives daily commercial use without showing it.
Helix Modular — engineering detail.
All specs reported in imperial and metric. Final figures confirmed on the spec sheet at install.
| Format | Modular — site-assembled and certified |
|---|---|
| Operating pressure | 1.1–2.0 ATA (16.2–29.4 psi / 111.5–202.7 kPa) |
| Pressure-vessel rating | Tested in place to 150% of max operating pressure |
| Oxygen concentration | 93 ± 3% medical-grade |
| Oxygen flow | 10 L/min (2.64 gal/min) |
| Sound level | < 50 dB at full operating pressure |
| Chamber weight | 1,895 lb (860 kg) |
| Footprint | 73.2 × 43.3 × 72.6 in (1860 × 1100 × 1844 mm) |
| Construction | Stainless steel pressure vessel · 15 mm reinforced hatch |
| Safety | Dual pressure-relief valves · smart hatch interlocks · emergency-vent control |
| Power | 220–240 V AC, dedicated circuit (electrical signoff included in install) |
| Certifications | Manufactured to medical-device-grade quality standards · CE-marked components |
Everything you need to commission.
- Helix Modular hyperbaric chamber kit
- Integrated oxygen concentrator and flow control
- Touchscreen operator console with session presets
- 15 mm reinforced hatch with smart safety interlocks
- Dual pressure-relief safety system
- On-site assembly, pressure test, and commissioning report
- Operator training (in-person)
- Helix Modular Owner Manual (PDF)
- Founders Bundle: priority service, training, and lifetime firmware updates
Where Helix Modular fits.
Multi-room wellness facilities, longevity clinics, sports recovery centers, and any install where a fully assembled chamber cannot physically reach the target room. Helix Modular is purpose-built for retrofits and challenging building geometry.
Clinical Hyperbaric sells the Helix Series as wellness equipment. We do not market it as a medical device, and we do not bill insurance. The CPT reference below is provided so practitioners can map their own treatment language inside their own scope of practice — it is not a claim of reimbursability and not medical advice.
CPT reference (informational only): 99183 — physician attendance and supervision of hyperbaric oxygen therapy, per session. Reimbursability is determined by payer, jurisdiction, and credentialing — not by us.

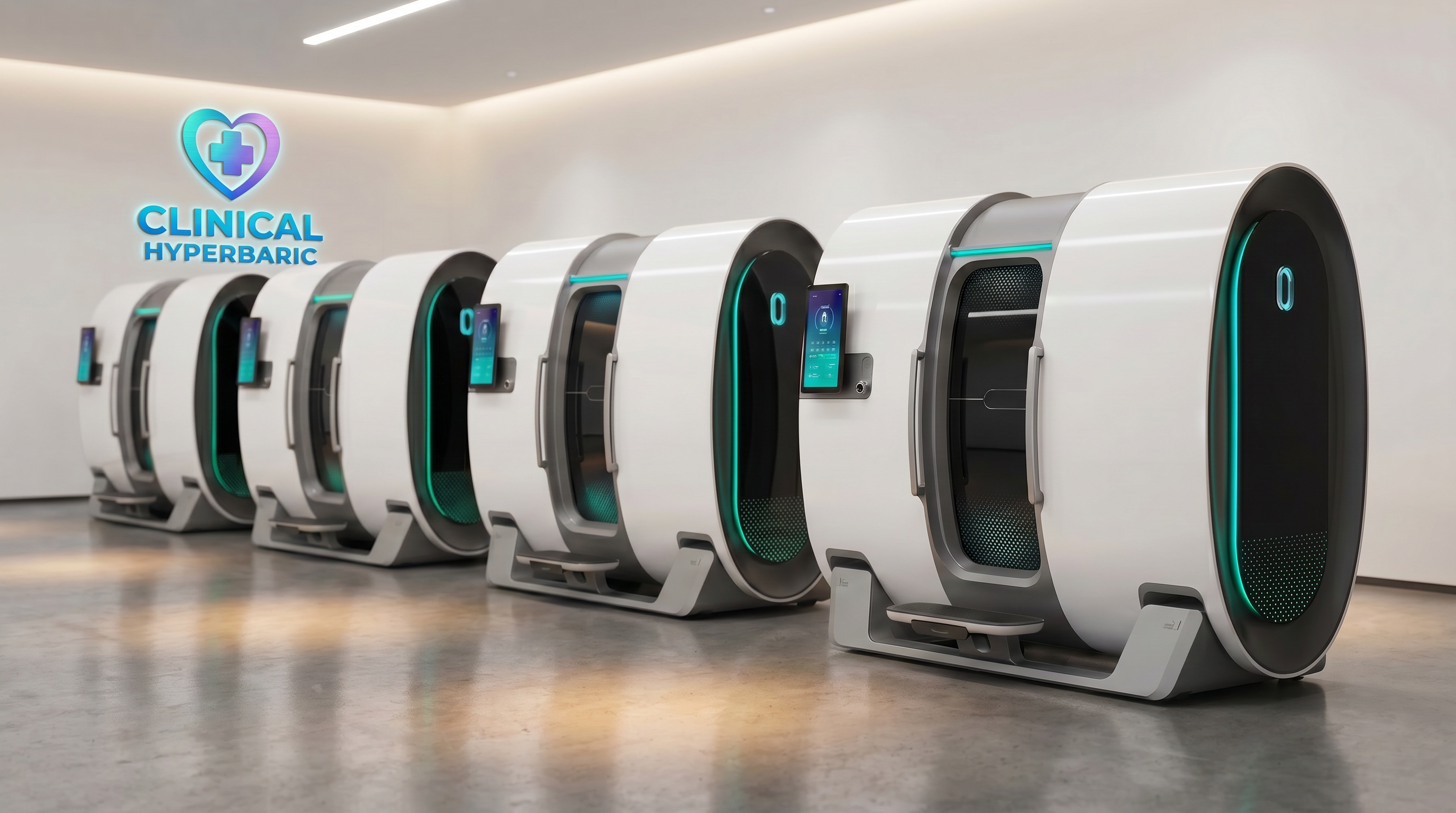

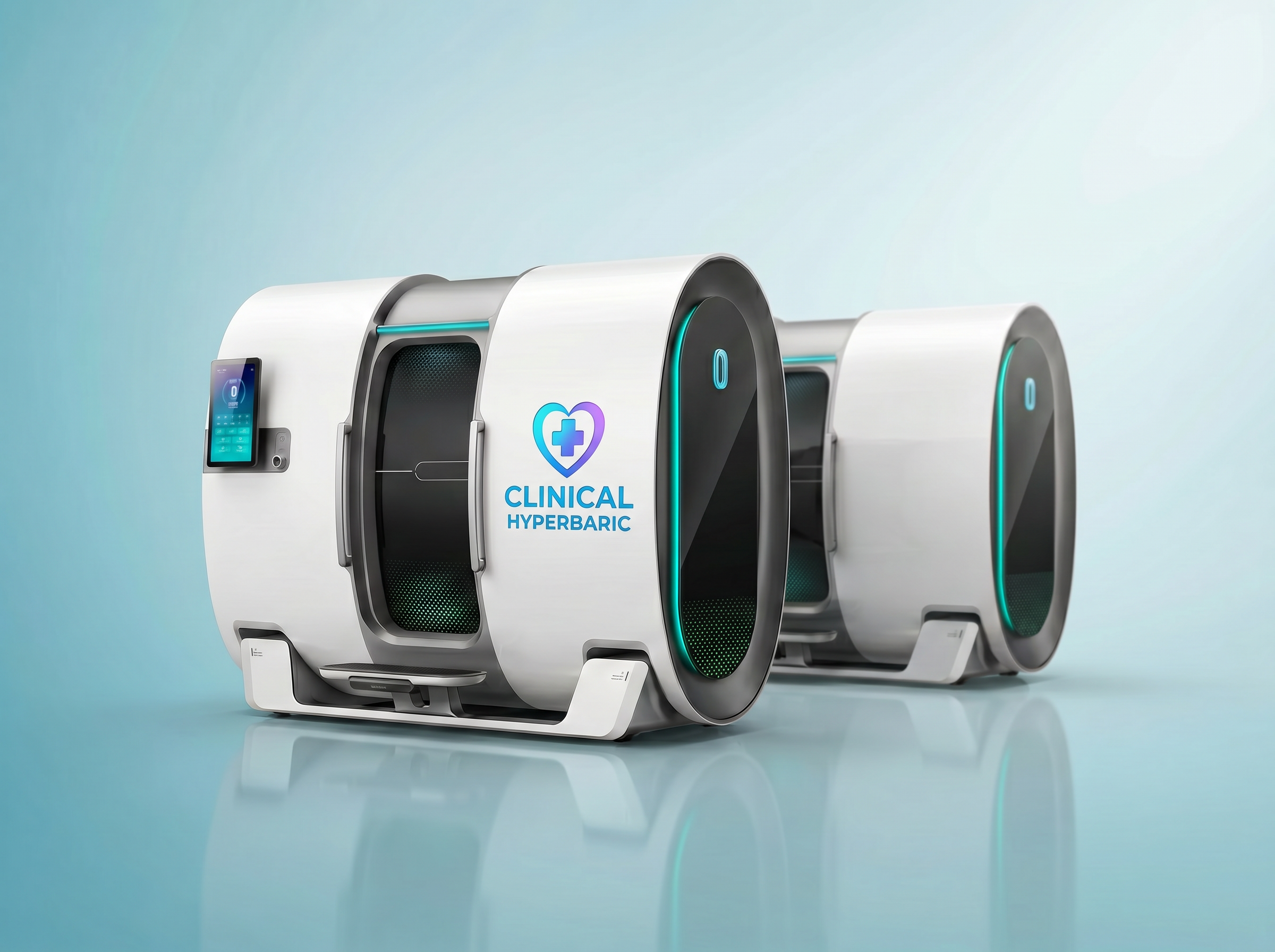

Helix Modular in context.
Renders shown. Final finish and lighting are confirmed at pre-install walkthrough.
Owner manual & technical files.
Full owner documentation is published below. We’ll also ship a printed copy with every unit.
Manual hosted on Shopify CDN · approximately 12 MB
Ready to bring Helix Modular into your facility?
Order now to lock in Founders Bundle pricing, priority install scheduling, and lifetime firmware updates. We’ll walk your floor plan, electrical, and ventilation before anything ships.
